Are motor brushes interchangeable?

Constant contact between the brushes and the commutator is required for the motor to operate. So, the brushes are made of a softer, more wearable material (carbon) than the commutator (copper). This helps avoid causing damage to the critical conducting components, the commutator segments, which are not interchangeable.

How do I know if my motor brushes are fit for purpose?

Slowly rotate the motor shaft, keeping the tester in position. If the tester doesn't light or buzz, or if it flickers or stutters when you turn the motor shaft, the brushes should be replaced. If the springs behind the brushes are damaged, they should be replaced as well.

Can you use different carbon brushes?

Re: carbon brushes

as you have seen, you can only file brushes of the same general composition to fit smaller brush holders.

Are carbon brushes universal?

Carbon brushes are fitted in what are known as universal motors. They are known as universal motors not because they fit every situation but because they work on both DC and AC current electricity.

What happens if you put carbon brushes in wrong way?

A correctly fitted brush has the curved end of the brush trailing against the commutator (the copper segments). If fitted the wrong way round then only the tip of the brush trails against the commutator instead. This would cause a loud ratchety sound and excessive sparking or lack of power.

Why do electric motor brushes spark?

Any physical damage to the holder or an accumulation of dirt on its inside may interfere with the free motion of the brush in the holder and thus result in sparking. Since the commutator is seldom perfectly round or concentric, the brush must movie in and out of its holder in order to maintain effective contact.

How do you know when to replace carbon brushes?

To test your carbon brushes, monitor themuntil they are worn down to around a quarter of an inch, as this is usually a good time to replace them. If the brush displays signs of breakage, crumbling or burning then it should be replaced.

How do I know what carbon brush I have?

The grade of the brush is usually found stamped on the face of the carbon. The grade indicates the material composition of the brush.

Can you repair carbon brushes?

Not all motors have carbon brushes that you can replace, but most of them do. And it really is as easy as replacing a battery.

Can you sand motor brushes to fit?

Cutting carbon brushes should be avoided as it's too risky. The best option is to sand or file brushes down carefully a bit at a time (using a fine a sand paper or a file) until they fit the desired brush holder of your machine.

How do you tell if brushes need replacing?

As a general rule, if either brush has worn to about a quarter inch long, it is time to replace it. If the carbon (a brush is essentially a carbon block with a metal spring tail) shows any signs of breakage, crumbling, or burning, the brush needs replacing.

How long do motor brushes last?

As an estimate, 7,500 hours brush life is normal for general purpose, medium horsepower DC motors with good commutator film with commutator surface speeds in the range of 2,500 to 4,000 feet per minute. The minimum life might be 2,000 to 5,000 hours with 10,000 hours being about maximum.

What is a commutator in a motor?

A commutator is a rotary electrical switch that periodically reverses the current between the rotor and the external circuit. The commutator was discovered by William Ritchie and Hippolyte Pixii in 1832. Commutators are used in DC machines (DC motors and DC generators) universal motors.

Do AC motors have brushes?

AC induction motors have no brushes and have a much longer life expectancy. DC motor speed is controlled by varying the armature current, while AC motor speed control is achieved by varying the frequency of the alternating current, often with a variable frequency drive(VFD).

What do the numbers on carbon brushes mean?

The numbers found on carbon brushes (printed and engraved) can mean various different things, but usually they will identify the composition or batch number for the material. Each supplier label their own brushes differently so they can mean almost anything, and each tool can have a different type of brush.

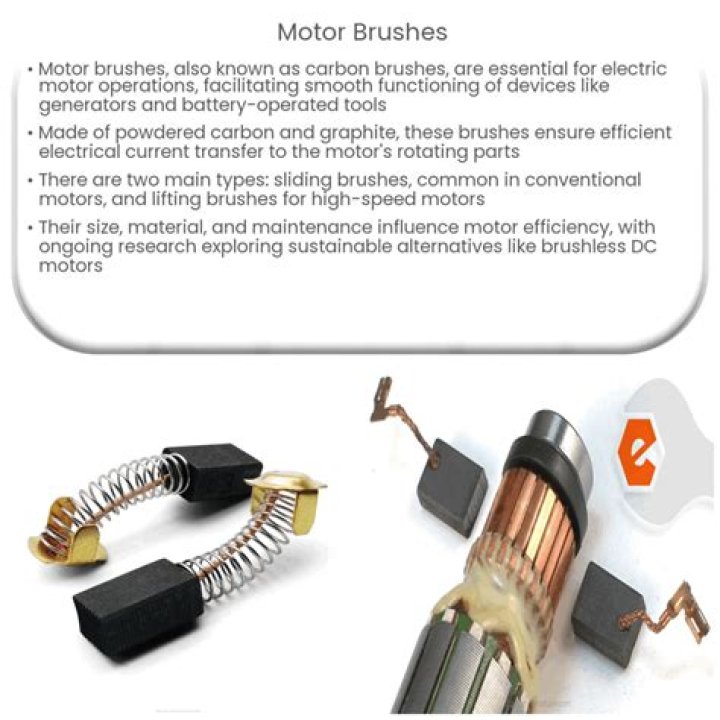

What do the brushes do in a motor?

A carbon brush, also known as a motor brush, is the small part of the motor that conducts electrical current between the stationary wires (stator) and the rotating wires (rotor) of a motor or generator.

Should electric motor brushes spark?

If your motor brushes are sparking, it may be a sign that they need replacing. Some sparking is normal within a tool, but if it starts to get worse, it's likely a sign that the carbon brush is wearing.

What is not a cause of sparking at motor brushes?

The only way to eliminate sparking is to have no inductance in the winding, which is not possible.

Why commutators are sparking heavily?

Commutators are sparking heavily due to the following reasons: Sparking can be induced by various conditions like motor overload, vibration, increased humidity, worn brushes and worn commutators.

Can I replace a brushed motor with a brushless motor?

In order to change over from brushed to brushless, you must first purchase a new brushless motor. It is not possible to convert the motor itself from one type to the other. In addition, the brushless motors take a different type of electronic speed controller (ESC), so that must also be replaced.

Are brushless motors more powerful than brushed?

Brushless motors have become the industry standard in multirotor applications, and for good reason. Compared to their brushed counterparts, brushless motors are more powerful, more efficient and more significantly longer-lasting.

Do you have to break in a brushed motor?

Water is abrasive and accelerates the wear of the brushes and the comm surface, essentially taking life away from your new motor very quickly. Our motors don't really require a break-in before use, but you can run them on low voltage (4-6V) for a minute or two both directions to seat the brushes.
