How do you adjust a derailleur barrel?

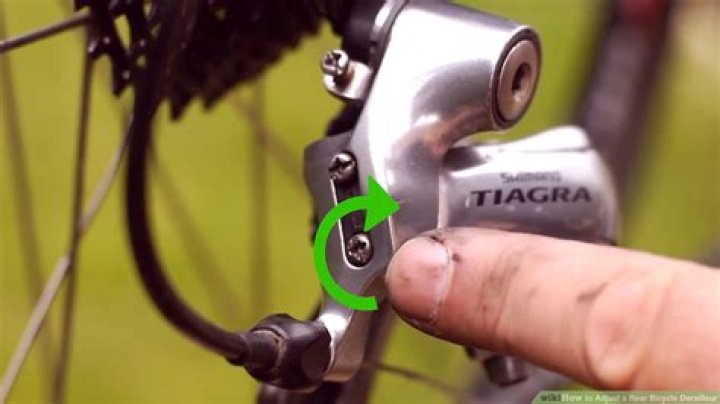

That's a barrel adjuster, which is used to tune the derailleur adjustment. Standing behind the bike, the barrel adjuster is turned either counter-clockwise or clockwise in half-turn increments until the shifting hesitation is cured.

Which way do you turn the barrel adjuster?

To do this, turn the barrel adjuster (see below) counter clockwise. If the chain is not shifting well from the largest to the smallest chainring, then the inner wire tension needs to be lowered. To do this, turn the barrel adjuster clockwise.

How do you reset a barrel adjuster?

If barrel adjuster is all the way in or out there will be no adjustment possible. In these cases reset the barrel. Shift to innermost chainring and loosen inner wire pinch bolt. Turn the barrel fully clockwise and back out about 2 full turns.

Which way do you turn a barrel adjuster front derailleur?

Turn the barrel adjuster clockwise (a quarter turn at a time) to move the derailleur cage inward, away from the chain surface. Turn it the counterclockwise direction to move the cage outward.

How does a barrel adjuster work?

Barrel adjusters are small cups that have a hole in the bottom, and are screwed into different points around your bike. They are usually located by your brake levers, brake calipers, gear levers, and derailleurs. They work by increasing the amount of distance an inner cable will travel.

How do you use a barrel adjuster on a mountain bike?

If you turn the barrel adjuster counterclockwise, you are screwing it out and adding more space between each end of the cable and adding tension to the cable. Shift into the smallest cog on the cassette. While pedaling the bike, shift one cog larger by clicking the shifter lever.

Do you need barrel adjusters?

Brake and shifter barrel adjusters are necessary to fine tune caliper engagement and shift indexing. I do not recommend removing them as one day you will wish they were there. Backing a barrel adjuster all the way out will not strip the threads as there is no thread engagement therefore no damage to the threads.

Why does my rear derailleur slip?

Rear Derailleur: derailleur can lose its proper aligment after time, mostly the cag bend to the outer side, which may breaks the chain alignment with the cassette cogs, that may can cause the chain to slip under hard pedaling.

How do you adjust a Shimano Tourney front derailleur on a mountain bike?

To adjust the height of the front derailleur, locate the positioning clamp that connects the derailleur to the frame of the bike. Turn the clamp bolt clockwise to loosen it and then adjust the height. Tighten the bolt once it's adjusted.

When I pedal my bike it makes a clicking noise?

A clicking noise is the most common sound your bike can make. It can be due to the rider pedaling fast, and the chain wants to jump up and down the rear cassette to accommodate the demands of the pedal. To identify the sound, you can slow down from pedaling and observe whether you still hear a sound.

What happens if front derailleur too high?

Derailleur Alignment & Positioning

Most front derailleurs can be adjusted for height and rotation. If the cage is set too high over the largest ring, it may not perform well. Too high a cage can cause a slow shift, and can allow the chain to shift over the largest ring.

Why is my front derailleur slipping?

For the front derailleur, you have to apply tension to the cable to get it to move to the right ("harder gear") if the cable lengthens (or slips), by even a millimeter or two, it can cause the front tuning of the gear system to get out of whack with the result being the chain dropping to the easier gear(s).

How do you adjust the front derailleur height?

Step 1: Front Derailleur Height

1. Shift the derailleur to the middle front chainring. ...
2. The gap between the teeth on the outer front chainring and the lower edge of the outer cage plate should be about 1-2mm. ...
3. To raise or lower the derailleur, first relieve the inner wire tension by shifting to the lowest chainring.

How do I know if my barrel adjuster is broken?

turn the barrel adjuster anti-clockwise if you don't see it moving out as your turn it, something is broken. if it's in more than one piece, it's broken.

What is inline barrel adjuster?

Inline barrel adjuster, designed for bikes which don't have frame mounted adjusters to trim the front mech. Simply cut front gear cable outer to fit. Allows you trim frotn mech and adjust for cable stretch. Foolproof operation. Perfect for cable frames with internal routing Full Description.

Why is my chain rubbing front derailleur?

The reason the chain rubs is because the cable is too loose. And when it's too loose, shifting onto the large chainring results in only a partial shift. With sufficient tension on the derailleur cable, the derailleur cage will move to its full outside limit and there will be clearance for the chain – and no rubbing.

Which derailleur do you adjust first?

In a nutshell, adjust the front derailleur first, then the rear. Show activity on this post. If the derailers just need minor tweaking (they are basically in adjustment but are "not quite right") then you adjust the one that is obviously wrong, check the overall adjustment again, then again adjust what needs adjusting.
