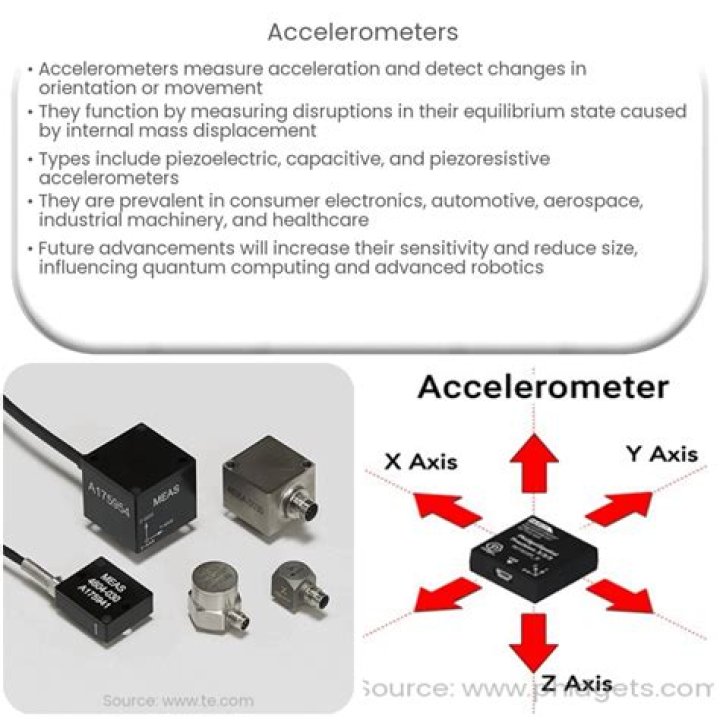

There are two types of accelerometers in general: AC-response and DC-response. In an AC accelerometer, as the name implies, the output is AC coupled. An AC coupled device cannot be used to measure static acceleration such as gravity and constant centrifugal acceleration, for example.
What type of sensor is an accelerometer?
An accelerometer is an electronic sensor that measures the acceleration forces acting on an object, in order to determine the object's position in space and monitor the object's movement.
What is the basic principle of accelerometer?
An accelerometer is a device that measures the vibration, or acceleration of motion of a structure. The force caused by vibration or a change in motion (acceleration) causes the mass to "squeeze" the piezoelectric material which produces an electrical charge that is proportional to the force exerted upon it.
What is the function of accelerometer?
An accelerometer is a basic technology that converts mechanical motion into an electrical signal. It is an electromechanical device that measures acceleration force, whether caused by gravity or motion.
Which accelerometer is best?
Piezoelectric accelerometers are the first choice for most vibration measurements since they have a wide frequency response, good sensitivity and resolution, and are easy to install.
38 related questions foundWhat is DC accelerometer?
When analysis of very low frequency motion or constant acceleration is required, a DC accelerometer is necessary. Unlike piezoelectric accelerometers, DC sensors respond to 0Hz and are, therefore, often referred to as DC response sensors.
What is XYZ accelerometer?
The accelerometer in the mobile device provides the XYZ coordinate values, which is used to measure the position and the acceleration of the device. The XYZ coordinate represents direction and position of the device at which acceleration occurred.
Which crystal is used in an accelerometer?
Most piezoelectric accelerometers are made of quartz crystal, piezoelectric ceramics, or, for high-temperature operation, tourmaline or lithium niobate. They obey Newton's second law, F = ma, in that the force acting on the measuring element is directly proportional to the acceleration produced.
What is gyro and accelerometer?
Accelerometer Versus Gyroscope
Accelerometers measure linear acceleration (specified in mV/g) along one or several axis. A gyroscope measures angular velocity (specified in mV/deg/s). If we take our accelerometer and impose a rotation to it (i.e., a roll) (Figure 8), the distances d1 and d2 will not change.
What is accelerometer vibration?
An accelerometer is a device that measures the vibration, or acceleration of motion of a structure. The force caused by vibration or a change in motion (acceleration) causes the mass to "squeeze" the piezoelectric material which produces an electrical charge that is proportional to the force exerted upon it.
What is capacitive accelerometer?
Capacitive accelerometers, also known as vibration sensors, rely on a change in electrical capacitance in response to acceleration. Accelerometers utilize the properties of an opposed plate capacitor for which the distance between the plates varies proportionally to applied acceleration, thus altering capacitance.
What is accelerometer smartphone?
Accelerometers in mobile phones are used to detect the orientation of the phone. The gyroscope, or gyro for short, adds an additional dimension to the information supplied by the accelerometer by tracking rotation or twist.
What is mechanical accelerometer?
Mechanical accelerometers are often designed so that an electronic circuit senses a small amount of motion, then pushes on the proof mass with some type of linear motor to keep the proof mass from moving far. The motor might be an electromagnet or in very small accelerometers, electrostatic.
What devices use an accelerometer?
Smartphones, cameras, video game devices, airplanes, rockets, and fall detection devices are just a few of the many different things that use these tiny little devices. The medical applications alone make accelerometers one of the most important tools in day-to-day health and automatic fall detection.
What is seismic accelerometer?
An accelerometer is a vibration sensor that measures acceleration directly proportional to the force applied to an object that causes it to change its position or speed. In seismology, the most common sensor is the seismometer, which measures the velocity of a point on the ground during earthquake.
Can based accelerometer?
Our CAN based Accelerometer and Tilt Angle Sensor is used to assist with Traction Control, Launch Control, and Power Reduction when cornering to help manage and maintain stability.
What is accelerometer and magnetometer?
The Accelerometer measures total acceleration on the vehicle, including the static acceleration from gravity it would experience even when its not moving. The magnetometer measures the magnetic field around the robot, including the static magnetic field pointing approximately north caused by the earth.
What is the difference between IMU and accelerometer?
Gyroscope accelerometer magnetometer sensor (IMU)
IMUs are essentially Accelerometers + Gyroscopes + Magnetometer sensors, making it a complete package capable of easily calculating orientation, position, and velocity!
What is ADXL345 accelerometer?
The ADXL345 is a small, thin, ultralow power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is acces- sible through either a SPI (3- or 4-wire) or I2C digital interface.
Can an accelerometer measure speed?
An accelerometer measures acceleration, not speed. In order to get speed, you will have to integrate the acceleration data over time.
What offset accelerometer?
Sensors 2 Freescale Semiconductor Offset: Offset refers to the DC output level of the accelerometer when no motion or gravity is acting on it, often called the 0g-offset.
Is the piezoelectric sensor an accelerometer?
A piezoelectric accelerometer is an accelerometer that employs the piezoelectric effect of certain materials to measure dynamic changes in mechanical variables (e.g., acceleration, vibration, and mechanical shock).
What is ADXL335 accelerometer?
The ADXL335 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±3 g.
What is a linear accelerometer?
The linear accelerometer measures the acceleration applied to the sensor built-in into the device, excluding the force of gravity, in m/s². For example, you could use this sensor to see how fast your car is going. The linear acceleration sensor always has an offset, which you need to remove.
What is accelerometer in Fitbit?
The Fitbit uses a 3-axis accelerometer that can track the number of steps taken, in addition to a few other features such as distance traveled, calories burned, and number of floors climbed. An accelerometer is an electromechanical device that measures acceleration forces.
