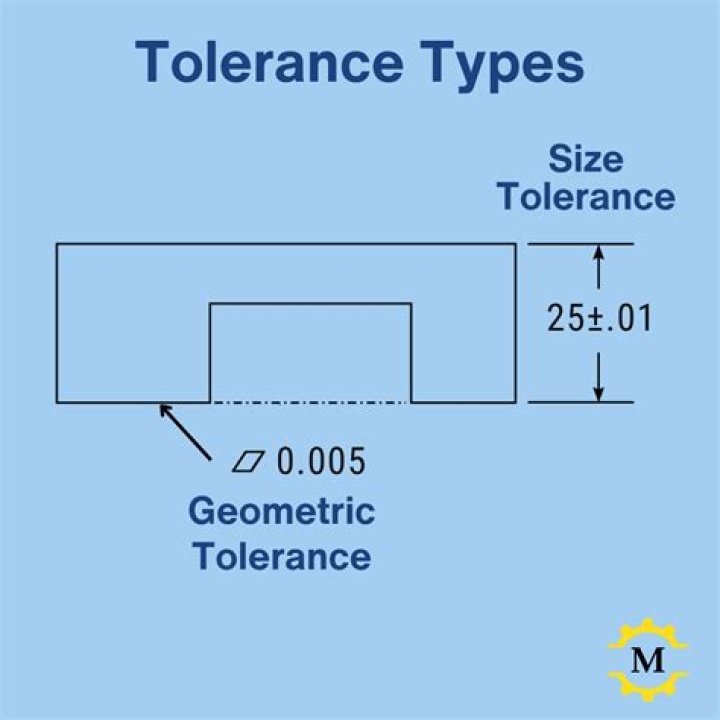

What are the types of tolerance?

These are grouped into form tolerance, orientation tolerance, location tolerance, and run-out tolerance, which can be used to indicate all shapes.

What is tolerance and its types?

A tolerance is an acceptable amount of dimensional variation that will still allow an object to function correctly. Tolerances. Three basic tolerances that occur most often on working drawings are: limit dimensions, unilateral, and bilateral tolerances.

What are the classification of tolerance?

Tolerance can be classified under the following categories: Unilateral tolerance. Bilateral tolerance. Compound tolerance.

What is types tolerance in engineering?

Engineering Tolerance. As per ASME, Tolerance in engineering is the total amount a specific dimension is permitted to vary from basic value. For example, If a given dimension is 25± 0.5. Its upper and lower tolerance value is 0.5 mm. Tolerance stack-up analysis ensures parts assembly even in the worst conditions.

How many kinds of tolerance do we have?

If we put together these five affective/effective states of the individuals who tolerate (trait, attitude, belief, commitment, action) with the three kinds of tolerance defined by the objects of tolerance, we get 15 possibilities, as illustrated in Figure 3.

What are the 3 types of tolerance?

These are grouped into form tolerance, orientation tolerance, location tolerance, and run-out tolerance, which can be used to indicate all shapes.

What is form tolerance?

Form tolerance refers to the tolerance zone that limits the deviation of a form element from its ideal geometry (straightness, flatness, roundness, cylindricity) and is orientated exclusively to the toleranced element.

What is a bilateral tolerance?

Bilateral tolerance is the term used when the tolerance zone is distributed from the target value or true profile in both directions. Bilateral tolerances allow equal variation on each side of the target.

What is specified tolerance?

Physical tolerances specify the deviation from a specific dimension. Any dimension between any two points can have a tolerance. Limits are a type of tolerance that specifies a different lower and upper deviation. These are used to ensure tolerance stack-up does not interfere with the function of the system.

How many types of tolerance are there in engineering?

These are grouped into Form tolerance, Orientation tolerance, Location tolerance, and Run-out tolerance, which can be used to indicate all shapes. Following are the three types of tolerances used in measurements: Unilateral tolerances.

What is basic tolerance?

It is the basis from which permissible variations are established by tolerances on other dimensions, in notes, or in feature control frames. In short, tolerances are not applied directly to basic dimensions because the tolerances are expressed elsewhere, usually in feature control frames.

What are the types of tolerance fit used in industry?

The three main categories are:

• Clearance fit.
• Transition fit.
• Interference fit.

What is tolerance 5th standard?

Tolerance is respecting the opinions of others which are different from our own opinion.

What is linear tolerance?

Linear Tolerance Theory

The purpose of measurement is to determine the location and size of features relative to their specific upper and lower tolerance limits. The space between these limits is called the Tolerance Zone. Linear tolerance is sometimes referred to as Unilateral or Bilateral tolerance.

What is unilateral tolerance example?

Unilateral Tolerance - A unilateral tolerance is a tolerance in which variation is permitted only in one direction from the specified dimension, example, 1.400 +. 000/ -. 006."

What is tolerance limit?

Tolerance limits define the range. of data that fall within a specified percentage with a specified level of confidence. The upper tolerance limit has been commonly used to establish a background threshold value, however, prediction limits.

What is a H7 tolerance?

H7 (hole) tolerance range = +0.000 mm to +0.025 mm. p6 (shaft) tolerance range = +0.042 mm to +0.026 mm. Potential interference will be between −0.001 mm and −0.042 mm.

What is the meaning of H7 tolerance?

The tolerances work in such a way that for a hole H7 means that the hole should be made slightly larger than the base dimension (in this case for an ISO fit 10+0.015−0, meaning that it may be up to 0.015 mm larger than the base dimension, and 0 mm smaller).

What is mechanical tolerance?

In mechanical engineering, tolerances set the allowable deviation from assigned dimensions. The use of tolerances helps to ensure that the final product is readily usable, especially if it is a part of a larger assembly.

What is unilateral system?

Definition of unilateral system

: a system of tolerances and allowances as applied to cylindrical mating surfaces having for its basis unilateral holes and involving measurement of the high and low limits of tolerance in one direction from the basic size.

What are the 4 types of form tolerances?

Form tolerances can be state by four tolerance zone. These form tolerances are Straightness, Flatness, Circularity, and Cylindricity.

What is straightness tolerance?

Straightness tolerance is a 2-dimensional GD&T callout that controls the straightness of part features. No axis can be perfectly straight. The goal is to ensure it is straight enough for the application. This callout sets a standard on how straight a feature must be along its length.

Which of the form tolerances is the most common?

2. Which of the form tolerances is the most common? Flatness 3.

What is the real tolerance?

Real tolerance between communities means not just tolerating but actually respecting the other person, wanting to understand what that other person is about, what that other person's faith is about,” said Gopalkrishna Gandhi, former diplomat and governor of Bengal, now distinguished professor of history and politics at ...

What is the Kannada meaning of tolerance?

IPA: tɑlərənsKannada: ಟಾಲರನ್ಸ
