Kaplan Turbine
Which type of turbine is used in tidal energy?
Which type of turbine is commonly used in tidal energy? Explanation: The Kaplan turbine is a propeller type reaction turbine that is usually immersed completely in the fluid it derives energy from.
Is turbine used in tidal energy generation?

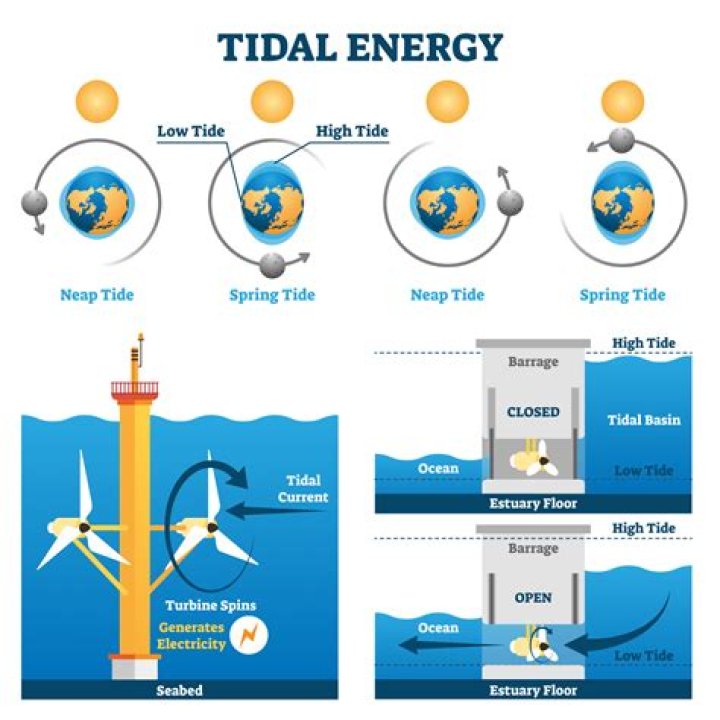

For most tidal energy generators, turbines are placed in tidal streams. A tidal stream is a fast-flowing body of water created by tides. A turbine is a machine that takes energy from a flow of fluid. That fluid can be air (wind) or liquid (water).
What type of turbine is used in tidal barrages?
The simplified tidal barrage system will have continuous, bidirectional flow through the turbines. A Kaplan Turbine is able to operate under the above described requirements: low hydrodynamic head. bidirectional flow.
How does a tidal turbine work?
During an incoming high tide, water flows over the turbines as the water rises. Then, the water flows back through the turbines as it becomes low tide. The turbines are connected to a generator which produces the electricity.
39 related questions foundWhere are tidal turbines located?
Tidal turbines are similar to wind turbines in that they have blades that turn a rotor to power a generator. They can be placed on the sea floor where there is strong tidal flow. Because water is about 800 times denser than air, tidal turbines have to be much sturdier and heavier than wind turbines.
What is an upwind turbine?
Explanation: An upwind turbine is a type of wind turbine where the rotor is positioned in front of the unit. The position is similar to that of propellers used in airplanes. Most of the wind turbines used commercially are upwind turbines.
Which type of turbine is commonly used?
Turbines used in hydroelectric power plants fall into two categories: Impulse and Reaction based. Impulse based turbines include Pelton and cross-flow turbines. Reaction based turbines include three subtypes: Francis turbine, propeller turbine (bulb turbine, Straflo turbine, Kaplan turbine types), and kinetic turbine.
How does a Kaplan turbine work?
The Kaplan turbine is an inward flow reaction turbine, which means that the working fluid changes pressure as it moves through the turbine and gives up its energy. Power is recovered from both the hydrostatic head and from the kinetic energy of the flowing water.
How many types of turbine are there?
1 Turbine. A turbine is a work producing device. Production of power is achieved by expanding a fluid. Mainly, there are two different types of turbines, steam and gas turbines.
Which type of turbine is Francis turbine?
The Francis turbine is a mixed flow-type turbine in which the water passes through the curved guide vanes and creates a high curved rotational flow at the outlet.
Where is turbine used?
Turbines are used in gas turbine engines on land, sea and air. Turbochargers are used on piston engines. Gas turbines have very high power densities (i.e. the ratio of power to mass, or power to volume) because they run at very high speeds.
What are four types of turbines?
While turbines can be classed as either impulse or reaction according to the way they function, there are four broad types of turbines categorized according to the fluid that supplies the driving force: steam, gas, water, or wind.
Which turbine is most efficient?
New research from Oxford Brookes University has found that vertical turbine design is more efficient than traditional turbines in large-scale wind farms. When set in pairs, vertical turbines increase each other's performance by up to 15%.
What is Downwind turbine?
Downwind Wind Turbine
The downwind turbine has its rotor on the back of the turbine. The nacelle typically is designed to seek the wind, thus negating the need for a separate yaw mechanism. Advantage: The rotor blades can be flexible since there is no danger of a tower strike.
What is the difference between upwind and Downwind turbine?
An Upwind turbine faces into the wind with the turbine blades in front of the Nacelle* while a Downwind turbine has blades to the rear of the Nacelle and faces away from the wind. Up-wind turbines are by far and away the most common, but down-wind turbines (usually two-bladed) are also used in certain situations.
What makes the windmill rotate?
The wind makes the windmill rotate. The windmill is used to draw water from tube wells and to run floor mills.
Where is tidal energy most used?
Two of the world's largest tidal power stations are barrages in South Korea and France, with 254 MW and 240 MW electricity generation capacity, respectively. The next largest in Canada has much lower generation capacity at 20 MW.
How big are tidal turbines?
The turbine blades are 18 meters (59 feet) across. It weighs 143 tons (286,600 pounds) and stands 22.5 meters (almost 74 feet) high. It is capable of generating enough electricity to power more than 1,000 homes.
How is tidal energy extracted?
The harnessing of energy in a tidal flow requires the conversion of kinetic energy in a moving fluid, in this case sea-water, into the motion of a mechanical system, which can then drive a generator.
What are the 3 basic types of turbines?
There are 3 main types of impulse turbine in use: the Pelton, the Turgo, and the Crossflow turbine. The two main types of reaction turbine are the propeller turbine (with Kaplan variant) and the Francis turbine. The reverse Archimedes Screw and the overshot waterwheel are both gravity turbines.
What are the types of wind turbines?
There are two basic types of wind turbines:
- Horizontal-axis turbines.
- Vertical-axis turbines.
What is turbine and its function?
A turbine is a steam-powered machine that causes a shaft—a rotating rod that transmits power or motion from the turbine—to produce electricity through movement. From: Advanced Renewable Energy Systems, 2014.
What is turbine energy?
In a turbine generator, a moving fluid—water, steam, combustion gases, or air—pushes a series of blades mounted on a rotor shaft. The force of the fluid on the blades spins/rotates the rotor shaft of a generator. The generator, in turn, converts the mechanical (kinetic) energy of the rotor to electrical energy.
What is the principle of turbine?
Turbine is a rotary mechanical device that extract the potential energy and Kinetic energy of fluids and convert into mechanical energy. It is a prime mover which transform the energy of working fluid in to mechanical energy of turbine shaft.
